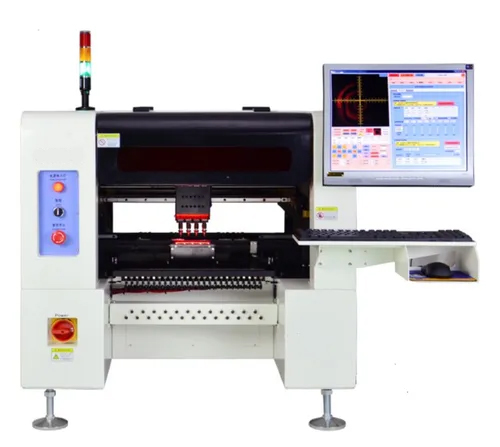

SMTMATE 880
| SPECIFICATION | 880 |
|---|---|
| Mounting head | 8 |
| Maximum Circuit Board Area | 500 × 455mm |
| Maximum Movement Range of Z Axis | 20 mm |
| Mounting accuracy | 0.01 mm |
| Mounting angle | 0 -360° |
| Buffering Range of Suction Nozzle | 4.5mm |
| Max Mounting Capability | 15000 PCS/hour |
| Average Mounting Capability | 12000 PCS/hour |
| Drive Motor | Panasonic high-speed DSP drive |
| Guide Rail | Ball Screw |
| Nozzle type | Juki |
| Element for mounting | 0201, 0402, 0603, 0805, 1206, SOT, SOD, SOP, SSOP, QFN, VCQFN, BGA… etc |
| No. of Feeders | 80 |
| Camera | 10 Mark Camera – 1 HSPD – 8 HD – 1 |
| Maximum Chip Size | 40*40 mm |
| Pin spacing | >0.3mm |
| Visual Display | 17 inches color HD display |
| Minimum Pin Spacing | 0.5 mm |
| Feeder | Pneumatic Feeder 8, 12, 16, 24 mm. Vibrator Feeder. Electrical Feeder |
