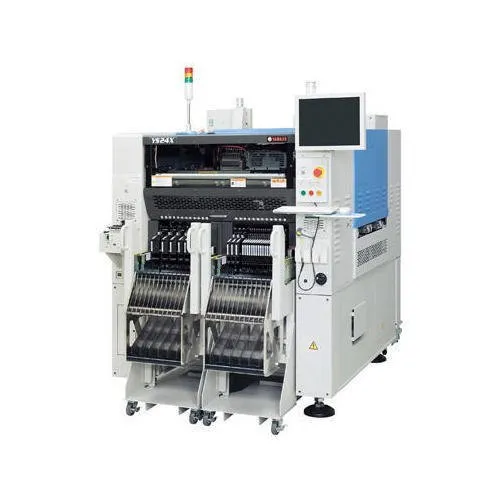

YAMAHA YG100 chip mounter is a high-performance, high-precision placement machine produced by YAMAHA specifically for high-speed general-purpose machines,it can simultaneously mount different types of special-shaped components.Using YAMAHA’s newly designed head structure,all nozzles up and down control are controlled by the electric motor, The machine mounting accuracy is greatly improved compared to the previous memory. The theory is 25,000 points per hour.
| YG100RA (FNC type) / YG100RB (SF type) | |
|---|---|
| Applicable PCB | L510 x W440mm to L50 x W50mm <Note 1> <Note 2> |
| Through-put (Optimum) | 24,000CPH (0.15sec/CHIP Equivalent) |
| Mounting accuracy (Yamaha’s standard components) |
Absolute accuracy (μ+3σ): +/-0.05mm/CHIP, +/-0.05mm/QFP Repeatability (3σ): +/-0.03mm/CHIP, +/-0.03mm/QFP |
| Applicable components |
0402 (Metric base) to ☐45mm components, SOP/SOJ, QFP, connector, PLCC, CSP/BGA, long connector <Note 3> <Note 4> <Note 5> Height of components which can be mounted: 15mm or less <Note 6> |
| Number of component types | 96 types (Max, 8mm tape reel conversion) <Note 1> |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz |
| Air supply source | 0.55MPa or more, in clean, dry states |
| External dimension <Note 7> |
L1,650 x W1,562 (End of cover) x H1,470mm (cover top) L1,650 x W1,615 (End of guide for feeder carriage) x H1,470mm (cover top) |
| Weight | Approx. 1,630kg (Main unit only) |
